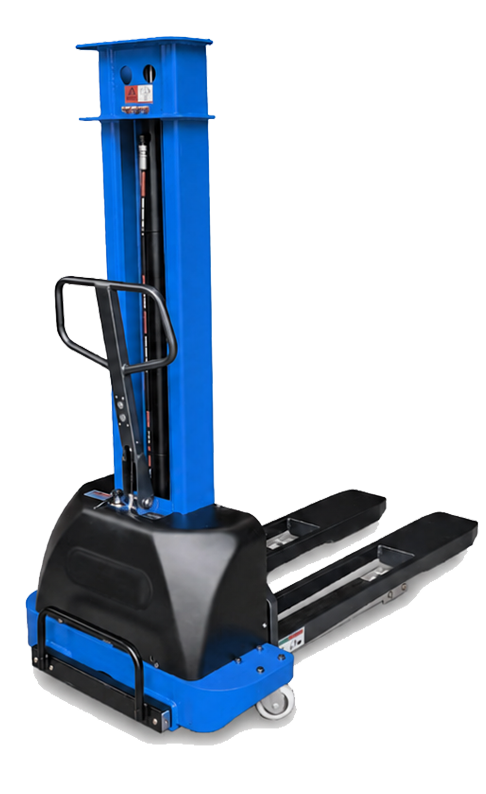

VANGO Semi-Electric Self-lifting Stacker

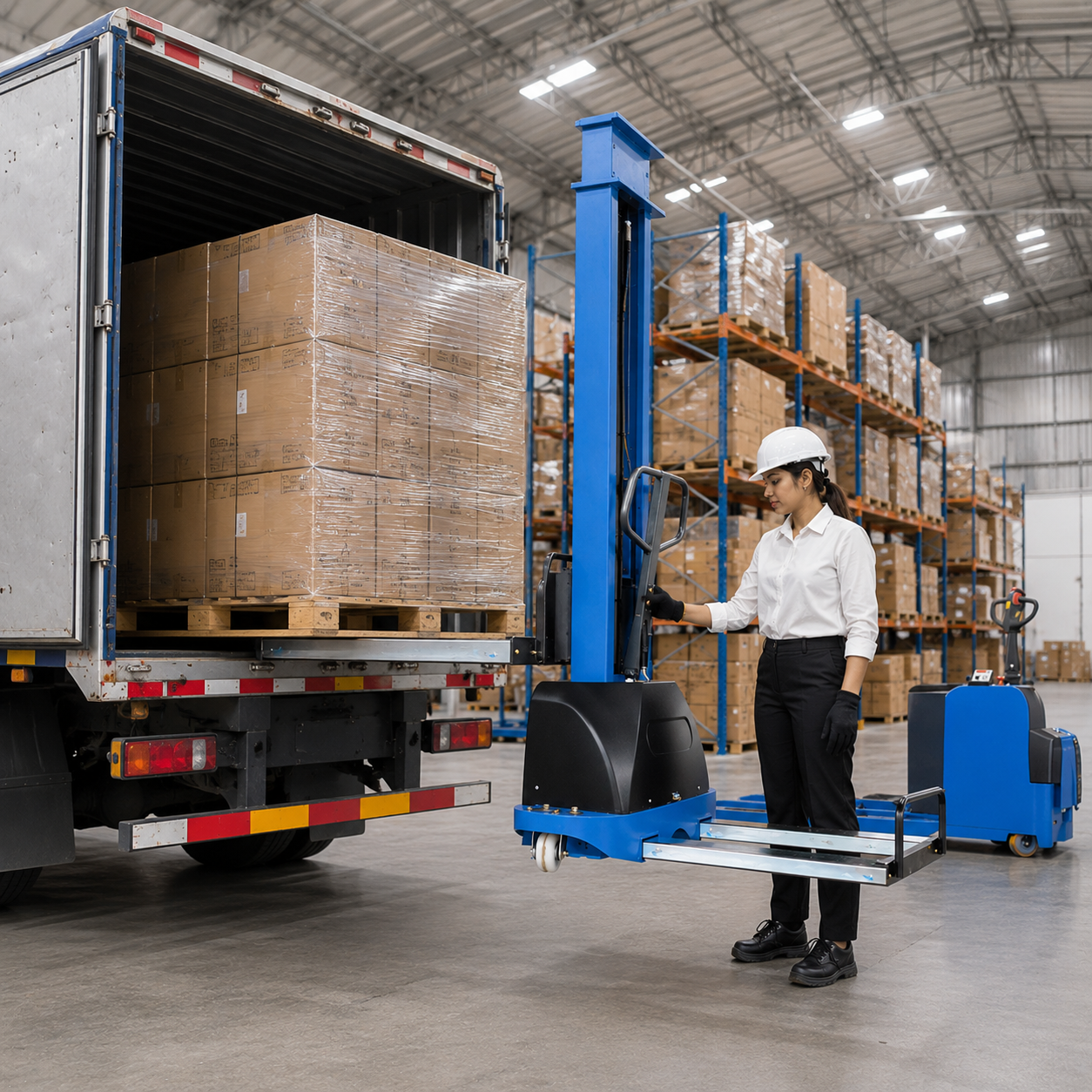

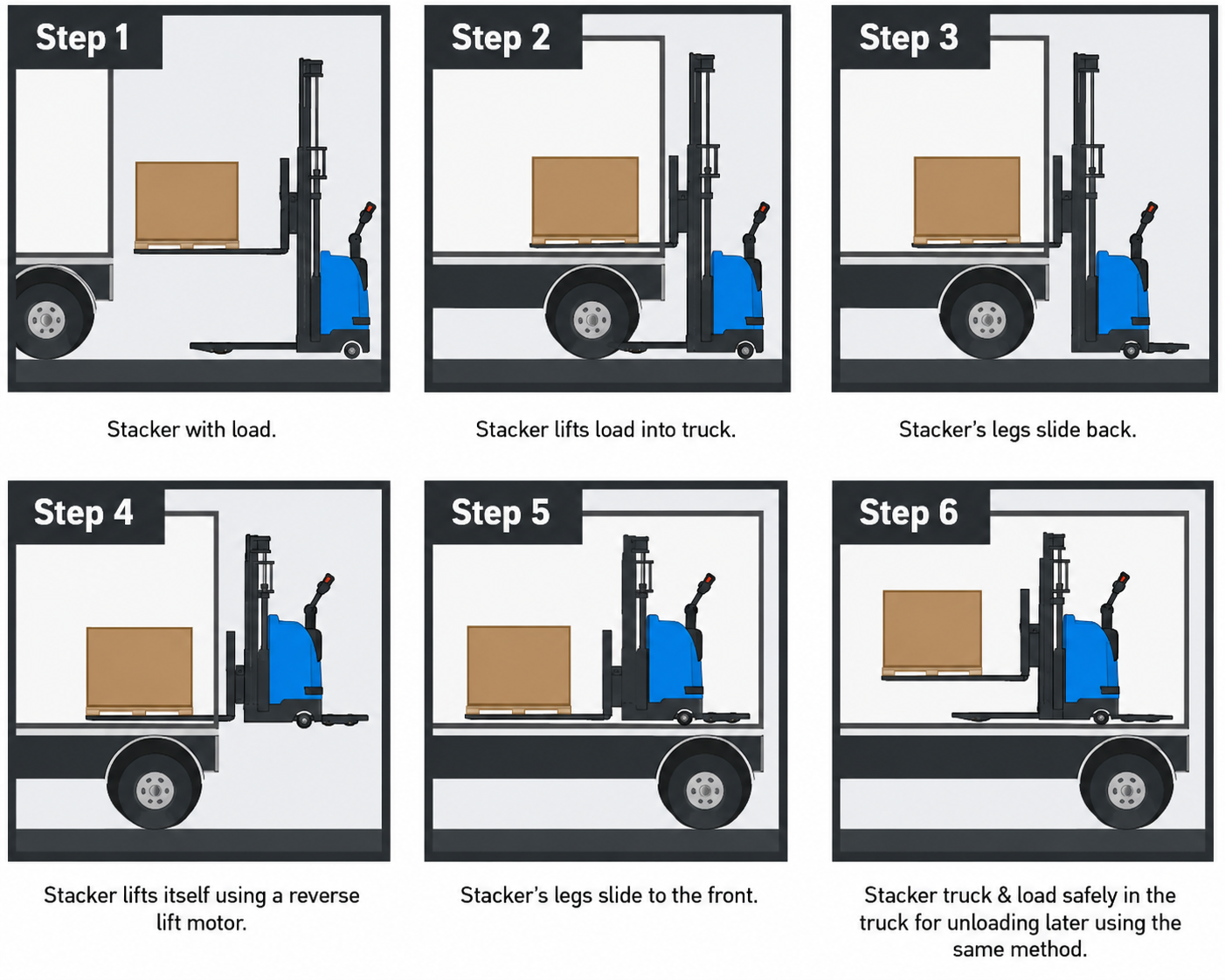

A self-loading stacker is an innovative material handling machine designed to load cargo into a delivery vehicle and then autonomously lift itself into the back of the truck alongside the load.
By functioning as both a pallet jack and a vehicle lift, it completely eliminates the need for expensive truck tail-gates, ramps, or forklifts at delivery destinations. This unique capability allows a single operator to safely transport, load, and unload heavy goods anywhere, making it a highly efficient solution for urban deliveries, logistics fleets, and job sites lacking loading docks.
Available exclusively through Dazee Trading QFZ LLC – Qatar’s authorised material handling equipment dealer – with full warranty, genuine spare parts and local after-sales support.
Key Features
- Made from alloy steel – Superior strength and extended durability for demanding conditions.
- Electric lifting and lowering – More reliable and durable than mechanical lifting systems.
- Lightweight design – Greater flexibility and ease of single-operator use.
- Efficient gear pumps and motors – Enhanced hydraulic energy efficiency.
- Energy saving – Gravity descent does not consume electricity, extending battery life between charges.
- Chrome-plated legs – Resistant to wear and corrosion for extended service life.
VANGO1000-E – Full Electric Self-lift Stacker
The VANGO1000-E full electric model adds brushless motor technology for maintenance-free operation with 20% energy savings over brushed motors. It features a widened shock-absorbing universal wheel for stability on uneven surfaces, an adjustable middle wheel for passability on asphalt, cement and slopes, and a compact modular design that occupies minimal space when in use. A safety travel speed limit protects operators when forks are at height.
VANGO Series Specifications
| Model | VANGO500 | VANGO1000 | VANGO1000-E |
| Capacity | 500 kg | 1,000 kg | 1,000 kg |
| Operator Type | Walkie | Walkie | Electric |
| Max. Fork Height | 800/1,000/1,300/1,600 mm | 800/1,000/1,300/1,600 mm | 800/1,000/1,300/1,600 mm |
| Overall Fork Width | 535/685 mm | 565/685 mm | 565/685 mm |
| Fork Length | 1,150 mm | 1,150 mm | 1,195 mm |
| Mast Lowered Height | 1,150/1,307/1,607/1,907 mm | 1,166/1,366/1,666/1,966 mm | 1,166/1,366/1,666/1,966 mm |
| Mast Extended Height | 1,870/2,270/2,870/3,470 mm | 1,850/2,250/2,850/3,450 mm | 1,850/2,250/2,850/3,450 mm |
| Min. Turning Radius | 1,100 mm | 1,100 mm | 1,100 mm |
| Lifting Speed | 55 mm/s | 55 mm/s | 55 mm/s |
| Lowering Speed | 80 mm/s | 100 mm/s | 100 mm/s |
| Lifting Motor | DC 0.8 kW | DC 1.6 kW | DC 1.6 kW |
| Battery | 12V / 45Ah | 12V / 45Ah | 48V / 45Ah |
| Weight (with battery) | 214-260 kg | 285-324 kg | 316-347 kg |
| Wheel Type | Nylon | Nylon | Nylon |
Applications
The VANGO Self-lift Stacker series is suited to a wide range of Qatar-based operations including retail warehouses, logistics hubs, small manufacturing facilities, and free zone distribution centres. Its compact, self-loading design makes it ideal for operations where a traditional counterbalance stacker would be too large.
Why Choose the VANGO Self-lift Stacker?
Lightweight and manoeuvrable, the VANGO series provides an efficient stacking solution for operations needing both flexibility and reliability. The full electric VANGO1000-E model’s brushless motor, adjustable wheel systems and safety speed limiting make it the most capable option for demanding environments.
Contact Dazee Trading QFZ LLC to discuss the right VANGO configuration for your Qatar facility.
